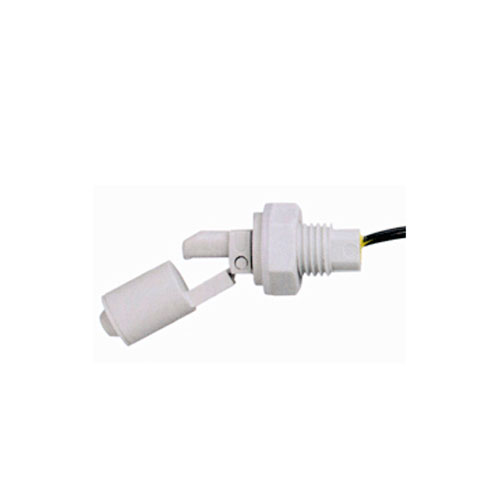

HORIZONTAL LEVEL SWITCH - DHM16
This liquid level switch, with overall lenght of 82,5 mm (60 mm inside the tank) is used in the horizontal position.
Fitting the switch upside-down inverts the contact. It is suitable for the tank wall of up to 8mm.
Reference
DHMCFA5360
Electrical characteristics (on resistive load)
- Maximum voltage: 250 VAC - 200 VDC
- Maximum current: 1A
- Maximum power: 30W
Mechanical characteristics
- Fastening by means of gasket, a locking washer and an M16 nut.
- Fitting from inside the tank.
- Drilling diameter: 17 mm
- Tightening torque:0,5 à 3 Nm
Maximum operating temperature
+ 80°C uninterrupted
Dimensions
- Lenght : 60 mm
- Diameter : 16 mm (M16 ISO)
Applications
- Medical sector
- Chemical industries
