General informations
Reed Switches
Examples of switching with the use of a moving magnet :
|
>> Direct Actuation:

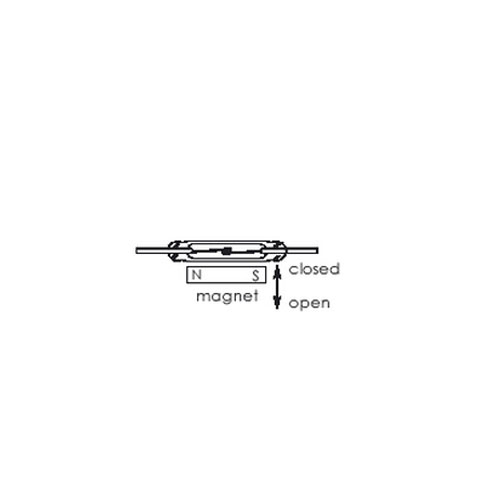

A magnet moved perpendicularly towards and away from a ReedSwitch turns it off and on one time.
|
| A magnet moved parallel to a Reed Switch operates it from one to three times.
|
| A ring magnet moved parallel to the ReedSwitches axis operates it from one to three times. |
|
A magnet swung towards and away from a Reed Switch operates it one time.
|
|
>> Rotation: Examples of switching through rotational movement: |
